CAC Boomerang Drawings
The aircraft:
Developed in a very short time using components from the Wirraway and Woomera, the Boomerang is the only Australian-designed fighter to reach production.
Although it had a good rate of climb and was very maneuverable below 15,000 feet, the Boomerang was out-classed by Japanese fighters. But it found a valuable role in army co-operation missions and served with distinction.
(Image above from the Australian War Memorial archives)
You can find more information regarding the Boomerang on these websites:
- Wikipedia entry for CAC Boomerang
- RAAF Museum entry for CAC Boomerang
- ADF Serials website entry for CAC Boomerang
- Article by Gary Sunderland on elliptical wings, including the Fred David story
For more detailed technical information about the Boomerang, click to go to the Boomerang Technical Information page.
The drawings:
This is a series of drawings providing detailed information regarding the construction and dimensions of the Boomerang. The first drawing to be completed is listed below.

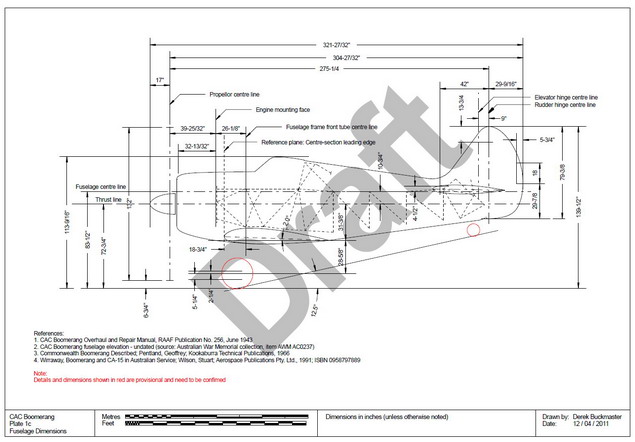

Plate 1c. Boomerang fuselage dimensions
 |
Overall dimensions of the Boomerang fuselage, showing the geometry of the fuselage and the rigging angles of the wing and tail-plane. Note that this is drawing is still a work-in-progress, which is indicated with a "draft" watermark. Click on the thumbnail to open a PDF file formatted for printing on A4 paper (approximately 37 KB in size). |
If
you download these drawings, you agree to use them under the
Creative Commons Attribution Share-Alike 3.0 Unported License.
Click on the link above for a full description of this license, but in summary it means that you are free to copy, distribute and adapt these drawings on the conditions that you attribute their creation to me and that if you adapt and distribute them you must also license the adapted versions under the same conditions.
You may seek my permission to waive any of these conditions (if, for example, you wish to publish the drawings in any form) by sending me an email.
