CAC Wackett Drawings
The aircraft:
As World War II loomed on the horizon, the Royal Australian Air Force was seeking an aircraft suitable for training the new generation of pilots who would soon be needed to defend the country or fight with the allied forces in Europe. So the R.A.A.F. issued Specification 3/38 for an intermediate trainer and the Wackett Trainer was developed to meet this need.
The first two CA-2 prototypes were initially powered by in-line 4-cylinder Gypsy Major II engines, but these turned out to be underpowered. They were then modified to be powered by more powerful 6-cylinder Gypsy Six engines, however these were not produced locally and were not available from the UK. The final solution was found in the US-produced Warner Super Scarab 7-cylinder radial engine. In this new form, the CA-6 Wackett met the requirements of the RAAF trainer specification, and 200 Wacketts were constructed and saw service with the RAAF and the Dutch East Indies Air Force (now Indonesia).
You can find more information regarding the Wackett trainer on these websites:
- DB Design Bureau Wackett Trainer technical details page
- Wikipedia entry for Wackett Trainer
- RAAF Museum entry for Wackett Trainer
- ADF Serials website entry for Wackett Trainer (includes a history of each aircraft produced)
The drawings:
This set of detailed drawings (originally drafted at 1:48 scale) covers the evolution from the CA-2 prototypes to the CA-6 production version.
These are accurate drawings based on factory information and measurements taken from actual aircraft.
|
|
|
 |

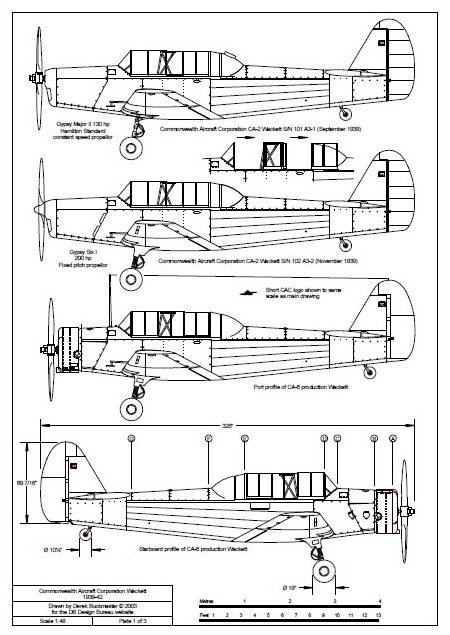

The first plate shows side elevations of the CA-2 prototypes and the final CA-6 production version. Click on the thumbnail at the left to open a PDF file. |
|
|
|
 |

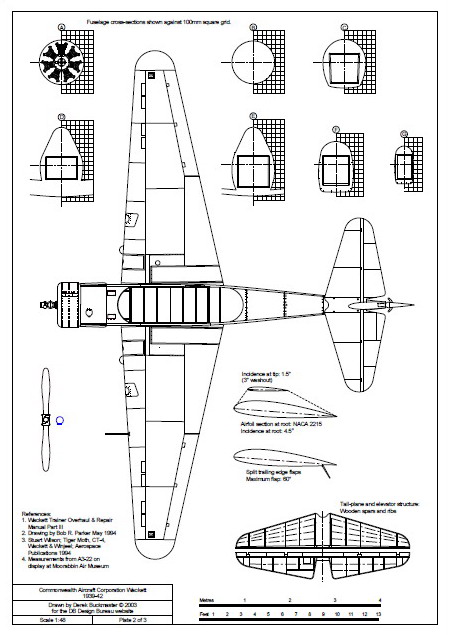

The second plate shows a plan view of the CA-6 production version along with fuselage cross-sections. Click on the thumbnail at the left to open a PDF file. |
|
|
|
 |
The third plate shows an underside view of the CA-6 production version. Click on the thumbnail at the left to open a PDF file. |
|
|
|
 |

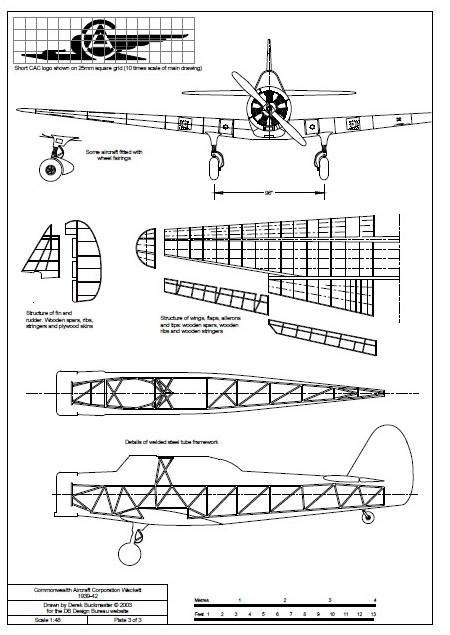

The fourth plate shows details of the framework and structure of the CA-6 production version. Click on the thumbnail at the left to open a PDF file. |
If
you download these drawings, you agree to use them under the
Creative Commons Attribution Share-Alike 3.0 Unported License.
Click here for a full description of this license, but in summary it means that you are free to copy, distribute and adapt these drawings on the conditions that you attribute their creation to me and that if you adapt and distribute them you must also license the adapted versions under the same conditions.
You may seek my permission to waive any of these conditions (if, for example, you wish to publish the drawings in any form) by sending me an email.
