Kingsford Smith Avitation Services KS-3 Cropmaster Drawings


The aircraft:

Following on from the sole KS-1 and KS-2, the KS-3 was the first production version of Kingsford Smith Aviation's Cropmaster.

The KS-3 featured the pilot in the original front seat position of the Wackett, with the hopper moved to the location of the original rear seat.

The first KS-3 airframe (which was also the KS-1 prototype and the KS-2 prototype before being converted to the KS-3 configuration) has been restored and is on display at the Queensland Air Museum in Caloundra. Their website includes a detailed history of this aircraft.

The drawings:

This set of detailed drawings (originally drafted at 1:48 scale) shows the details of the KS-3 Cropmaster production version.

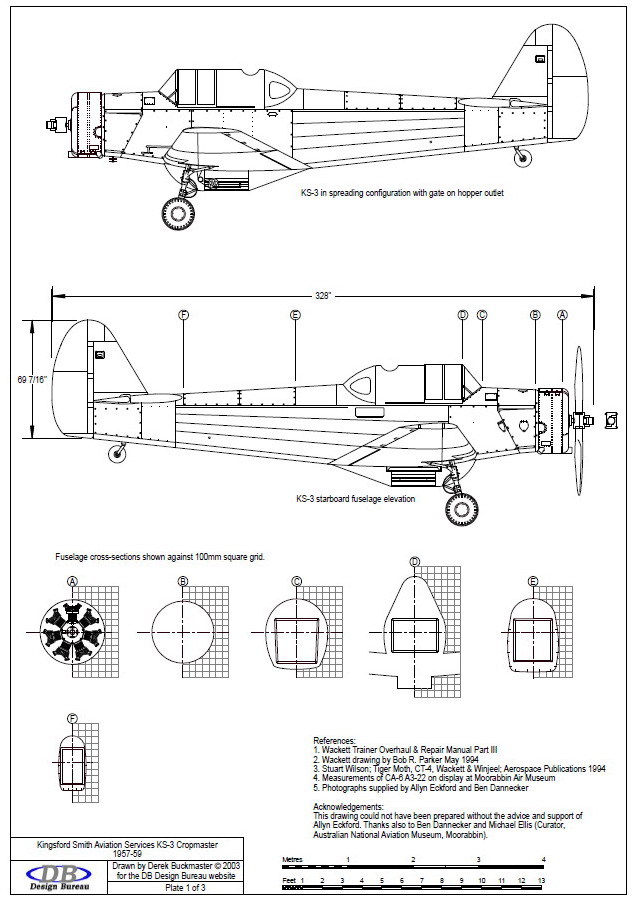

Plate 1. Side elevations

The first plate shows side elevations of the KS-3 Cropmaster in spreading configuration with a gate attached to the hopper outlet for spreading solids. Click on the thumbnail at the left to open a PDF file.

Plate 2. Plan view

The second plate shows a plan view of the KS-3 production version along with a scrap view of the KS-3 in spraying configuration. Click on the thumbnail at the left to open a PDF file.

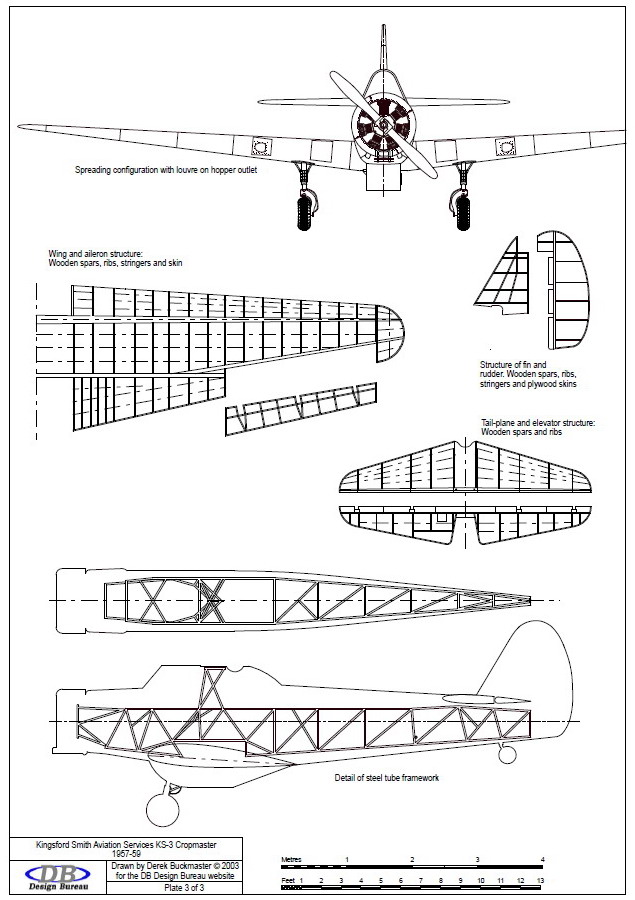

Plate 3. Underside view

The third plate shows a front view of the KS-3 and structural details. Click on the thumbnail at the left to open a PDF file.

If you download these drawings, you agree to use them under the Creative Commons Attribution Share-Alike 3.0 Unported License.

Click here for a full description of this license, but in summary it means that you are free to copy, distribute and adapt these drawings on the conditions that you attribute their creation to me and that if you adapt and distribute them you must also license the adapted versions under the same conditions.

You may seek my permission to waive any of these conditions (if, for example, you wish to publish the drawings in any form) by sending me an email.
